100W 200W Trolley-Type Handheld Fiber Laser Cleaning Machine
100W Trolley-Type Handheld Fiber Laser Cleaning Machine also called Laser Rust Remover Rust Laser Removal Machine
The laser cleaning machine is a portable integrated design, a super integrated injection molding chassis, a buffer design, compression, drop and wear resistance. Trolley-type chassis can be carried on high-speed train and flight.
It can work offline and can be used immediately after power on.

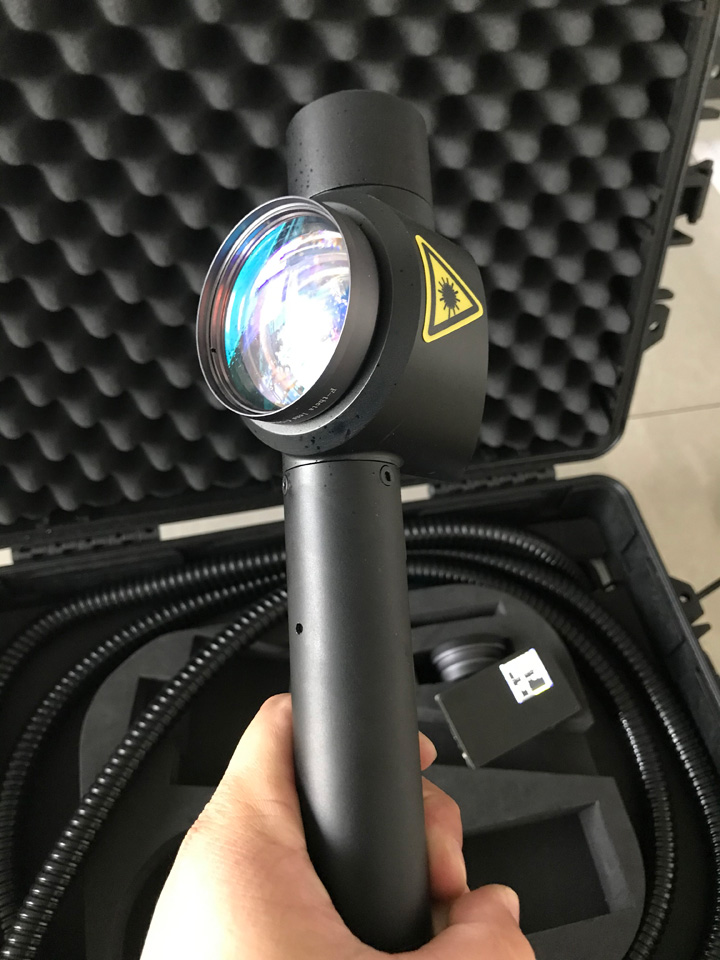

The cleaning head is extremely lightweight, 620g only (not include delivery cable), and can be operated by hand for a long time.

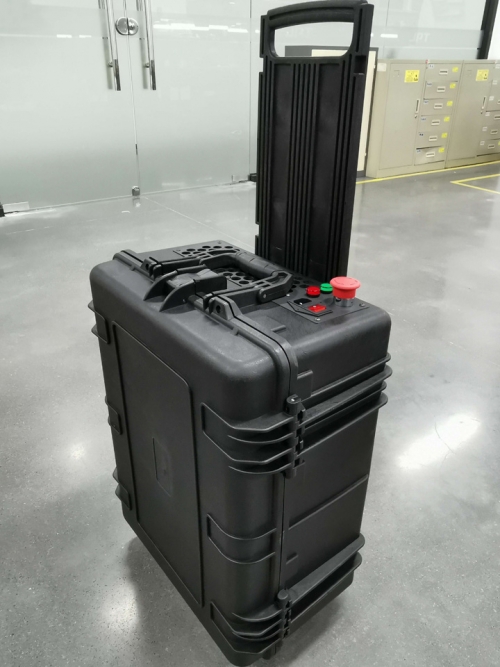

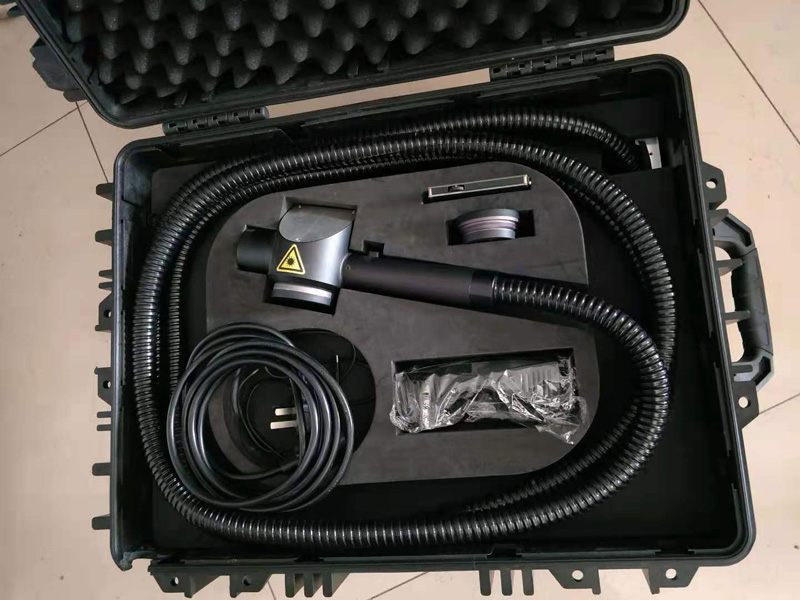

Machine Photos
Fiber Laser Cleaning Machine Laser Rust Paint Coating Removal Machine Laser Cleaner
200W Portable Laser Cleaning Machine Fiber Laser Cleaner, Efficiently Remove Metal Rust, Oil Stains, Wood Paint, Coating, Oxide Layer without Damaging the Substrate.
Compared with continuous type laser cleaning machine, it is more suitable for higher precision requirements cleaning such as mold cleaning.
Product Features
1. Trolley-type chassis design, super integrated injection molding chassis, stable struction and wearable.
2. Collimated laser beam output, beam size customizable (default 4mm).
3. 620g light weight cleaning head, and can be operated by hand for a long time.
4. Patented red light assisted focus technology, can adjust the focus position according to different focus lenses.
5. Wireless control Pad, can realize parameter setting and emission control remotely, and update parameters at any time.
6. With the Characteristics of Precise Positioning, It can Meet the Processing of a Variety of Modeling Workpieces and Achieve Efficient Cleaning.
| Model | SL-FC-100/200W |
| Output Method | Pulsed/CW |
| Delivery Cable Length(m) | 5 |
| Average Output Power(W) | >100 |
| Cooling Method | Air Cooled |
| Power Supply Voltage(V) | 110V-240V |
| Power Consumption(W) | <450 |
Advantage of the Fiber laser cleaning machine
The laser cleaning machine is a portable integrated design, a super integrated injection molding chassis, a buffer design, compression, drop and wear resistance. Trolley-type chassis can be carried on high-speed train and flight.
It can work offline and can be used immediately after power on
Collimated laser beam output, beam size customizable (default 4mm).
The cleaning head is extremely lightweight, 620g only (not include delivery cable), and can be operated by hand for a long time
Patented red light assisted focus technology, can adjust the focus position according to different focus lenses
Wireless control, can realize parameter setting and emission control remotely, and update parameters at any time
Trolley-type chassis design, can be carried on high-speed train and flight easily with 28kg full weight.
Super integrated injection molding chassis, cushioning design, stable structure, Wearable, shockproof and drop resistance.
Pulse laser cleaning machine, in addition to conventional surface cleaning, the machine has obvious effect on high temperature resistant coating and metal coating.
Application Material
Portable and lightweight, flexible and adjustable parameters, wireless control, etc., which can efficiently remove rust, stains, and oil on the surface of the workpiece, Plating, etc;
Can be applied to mechanical processing, cultural relics restoration, mold cleaning, food processing, electronic circuits and other industries;
With the characteristics of precise positioning, it can meet the processing of a variety of modeling workpieces and achieve efficient cleaning.
Application Area
Aviation,Electronic Machinery,Rubber Mould,Equipment Manufacturing,Auto Parats,Food Processing…
